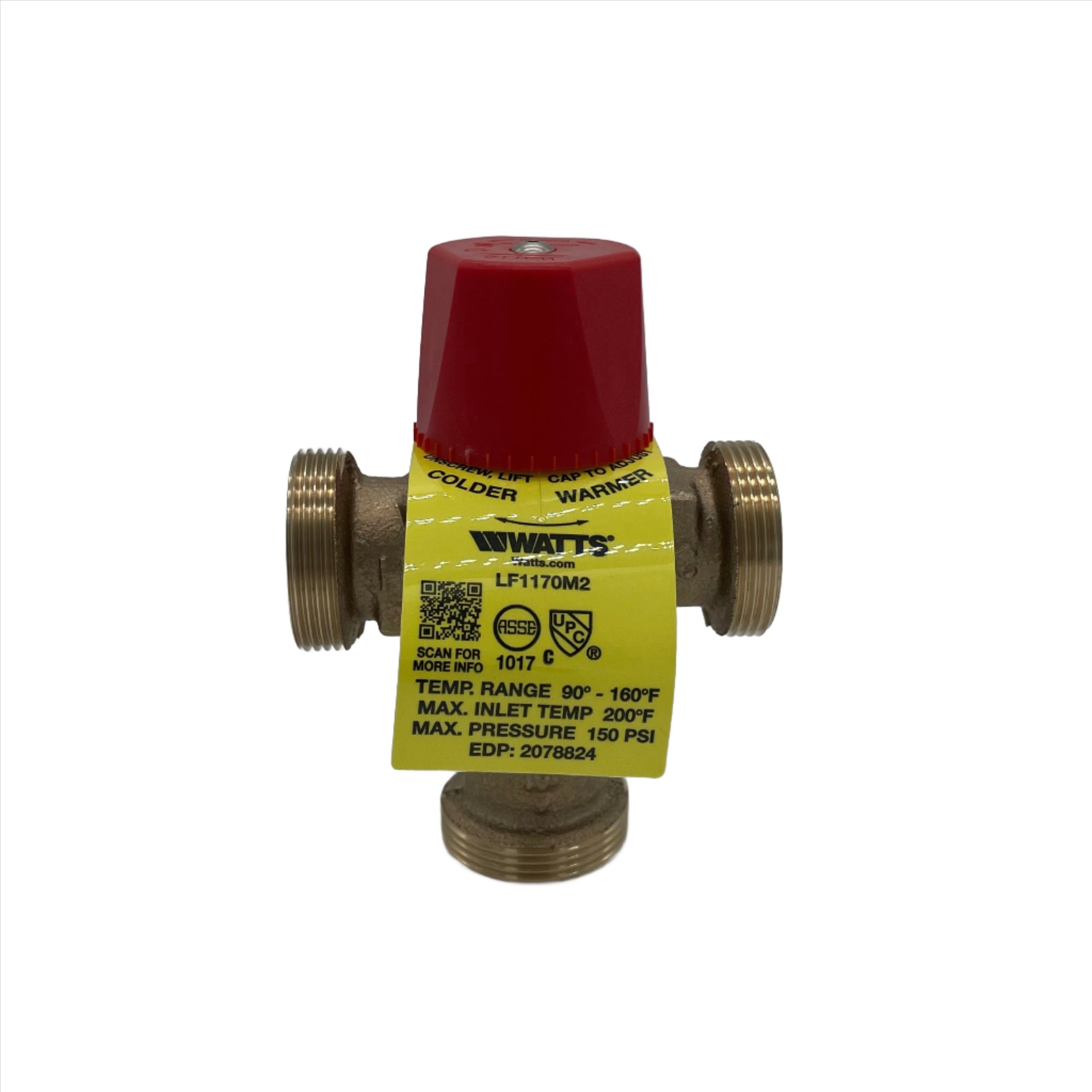

3/4 Inch (Lead-Free) Hot Water Control / Mixing Valve (LF1170M2-US 3/4)

This 3/4 inch lead free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, solder union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting. The maximum pressure is 150 psi (10.3 bar). The adjustable field range temperature is 90 to 160 degrees F (32 to 71 degrees C).

Lead free brass construction
Thermal actuation technology for precise temperature control
Integral filter washers and check valves
CSA certified B125 and ASSE 1017, IAPMO and UPC listed
